industry Twin Shaft Shredder Machine double shaft shredder machine blade SKD11
Production description
The double shaft machine reduces the size of material through cutting, tearing, and squeezing. This kind of shredding machine widely used in waste plastic, waste rubber, wood, crop, straw and other large volume of waste. Its mature technology and advanced design provides quality assurance for waste recycling, but also makes a great contribution to environmental protection.
In addition, double shredding machine has been certified by CE and adopted Siemens Motors. The microcomputer automatic control system be also used in this machine, which includes start, close, and overload inversion. The low speed, high torque,and low noise are the advantages of this shredding machine.
Working Principle

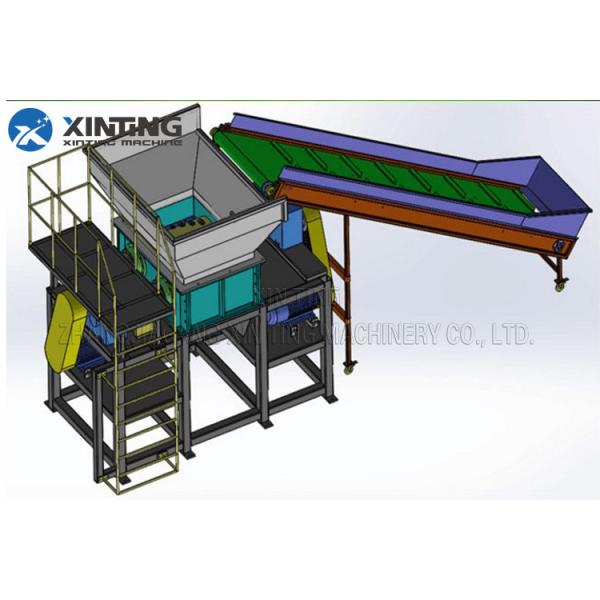

The structure of double shredding machine
1. Crusher body
The main body of equipment adopts high quality steel plate welding, that eliminates stress treatment/whole machine processing and ensures the stability of the equipment in the long time heavy load.
2. Bearing and seal
The bearing block using detachable patent registration, it not only quickly remove the knife, knife, bearings and other components, but also conducive to maintain and replace knife tool. Its unique sealing structure barrier to the crushing material and grease contact effectively. Moreover, handling liquid materials can also protect the bearings and gears.
3. Moving blade and fixed blade
The material of moving knife adopts special alloy tool steel forging blank, with precision machining, multiple heat treatment and low temperature refrigeration heat treatment technology. In addition, the integrity of the overall toughness hardness conduce to repair and reuse, this way ensures the cutting performance and working life. The fixed knife is installed with the patent hook, which optimizes the cutter replacement function and improve efficiency of the tool maintenance and replacement.
4.Cutter shaft
Processing and refining of cutter shaft using the special steel with high strength and heavy duty, its reasonable cooperation provides power to cut.
Product application
1.All kinds of hollow containers: plastic beverage cans, plastic barrels, drums, packing box, packing barrel
2. Waste home appliances: TV, washing machine, refrigerator shell
3.Pipe: large pipe, pipe, PE pipe
4. Waste template: wooden pallets, plastic pallets, pallet truck
5. Scrap tires: car tires, truck tires
6.Scrap metal: aluminum alloy shell, automobile, scrap aluminum casting, steel, lead and the engine shell thickness below 5mm
7.Kitchen waste, garbage, animal carcasses, RDF derivatives, medical waste, biological straw, garden waste
8.Rubber material, paper mill head rope
The cracteristic of double shredding machine
Thick knife, high crushing efficiency
The knife and blade are made of alloy steel casting, strong, long service life
Iron frame plate thickness, high torque resistance, extremely strong
Easy to adjust, low maintenance cost, economic and durable
Technology parameters
| Motor | 1900 | 1500 | 1000 | 500 |
| Motor power(kw) | 6-55kw, 8-55kw | 6-45kw, 8-45kw | 6-37kw, 8-37kw | 4-7.5kw, 4-7.5kw |
| The spindle speed(r/min) | 40,30 | 40,30 | 40,30 | 35,35 |
| Output(t) | 8-10 | 6-8 | 3-6 | 1-3 |
| Weight(kg) | 9600 | 7500 | 5200 | 3500 |
| Conveyer motor power (kw) | 4-3kw | 4-3kw | | |
| Number of the knife dish | 50 | 40 | 40 | 16 |
| Crushing particle size (cm) | 3-10 | 3-10 | 3-10 | 3-10 |
| Bin size (m) | 1.6 x 2.5 | 1.2 x 1.8 | 0.8 x1 | 0.7 x0.75 |
| Length, width, height(m) | 6.5x1.6x2.4 | 5.2x1.5x2.4 | 2.9x1.5x1.7 | 2.1x0.85x1.6 |
| Suitable Applications |
| Pipe | Plate | Barrel | Roll film |
| Lump material | Frame material | Circuit board | Wood |
| Tyre | And more... | | |
